Description
Specifications
- Accuracy: 2" or 5"
- Magnification: 28x
- Distance: 500m (non-prism); 5000m (prism)
- Field of view: 1°30’
- Ports: USB mini, USB host, Bluetooth, WLAN
- Operating System: Android 11
- Operating Hours: Up to 8 hours
- Power Source: Removable Li-Ion (6.4Ah/7.4v)
- Protection Class: IP55
- Operating Temperature: -4°F to 122°F (-20°C to 50°C)
Product Description

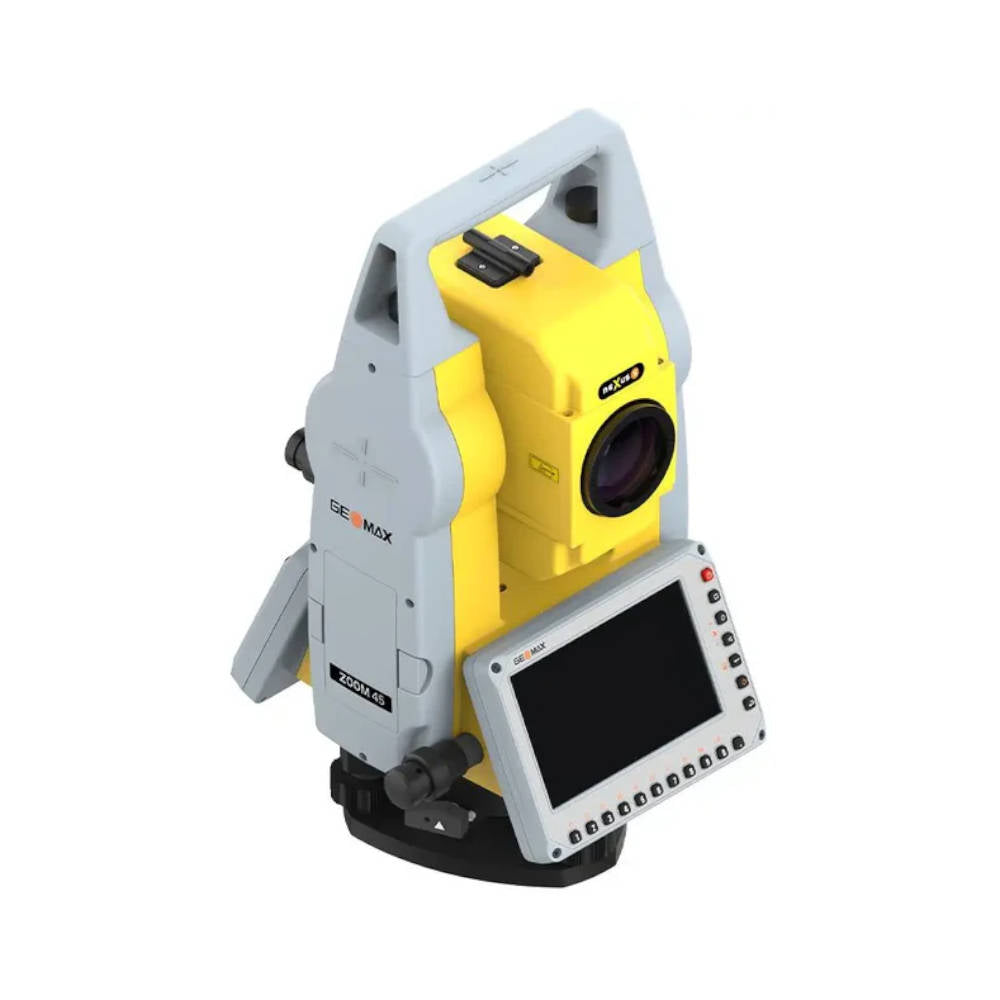

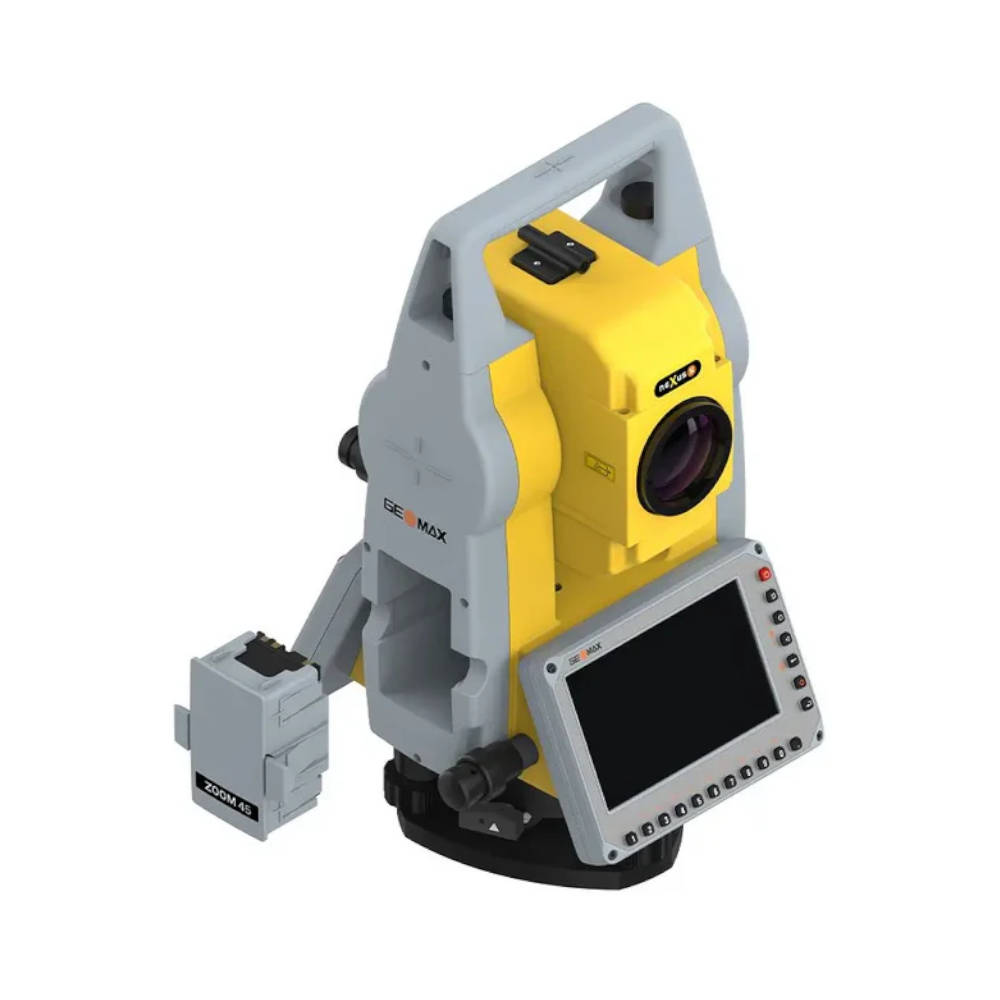

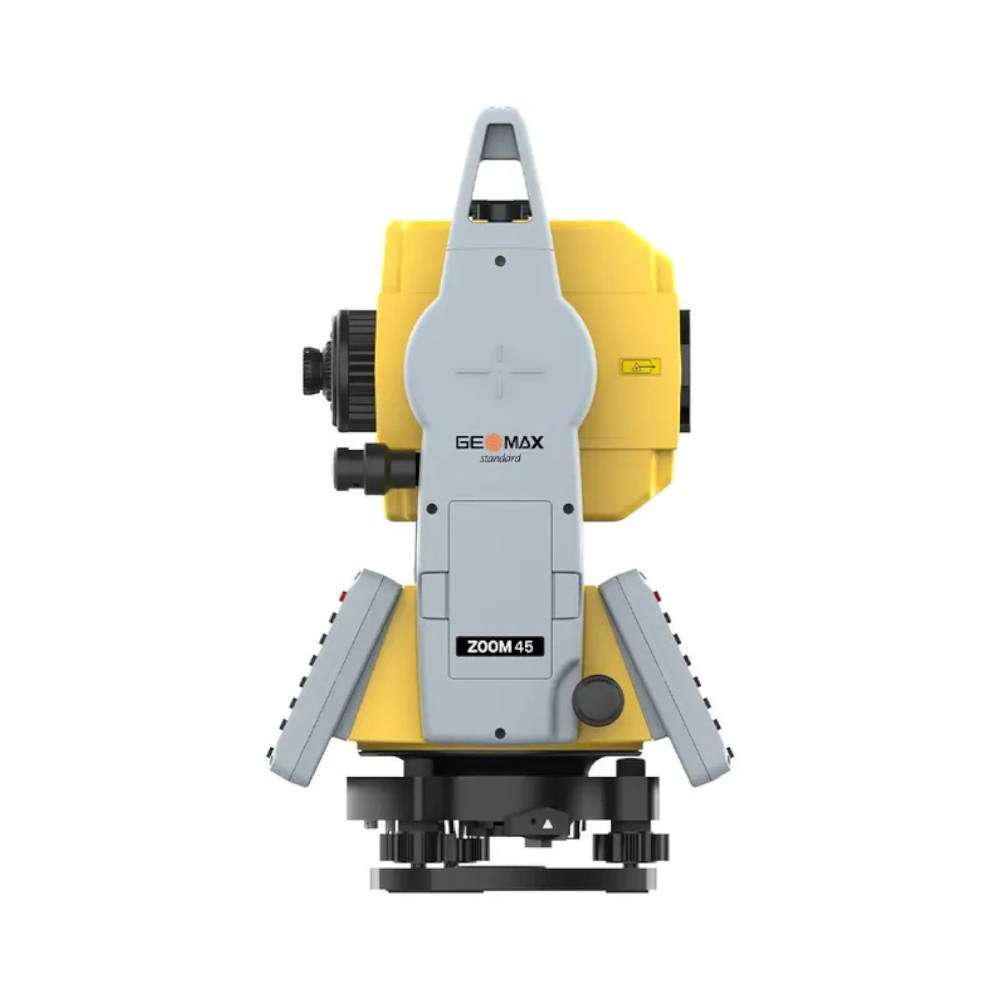

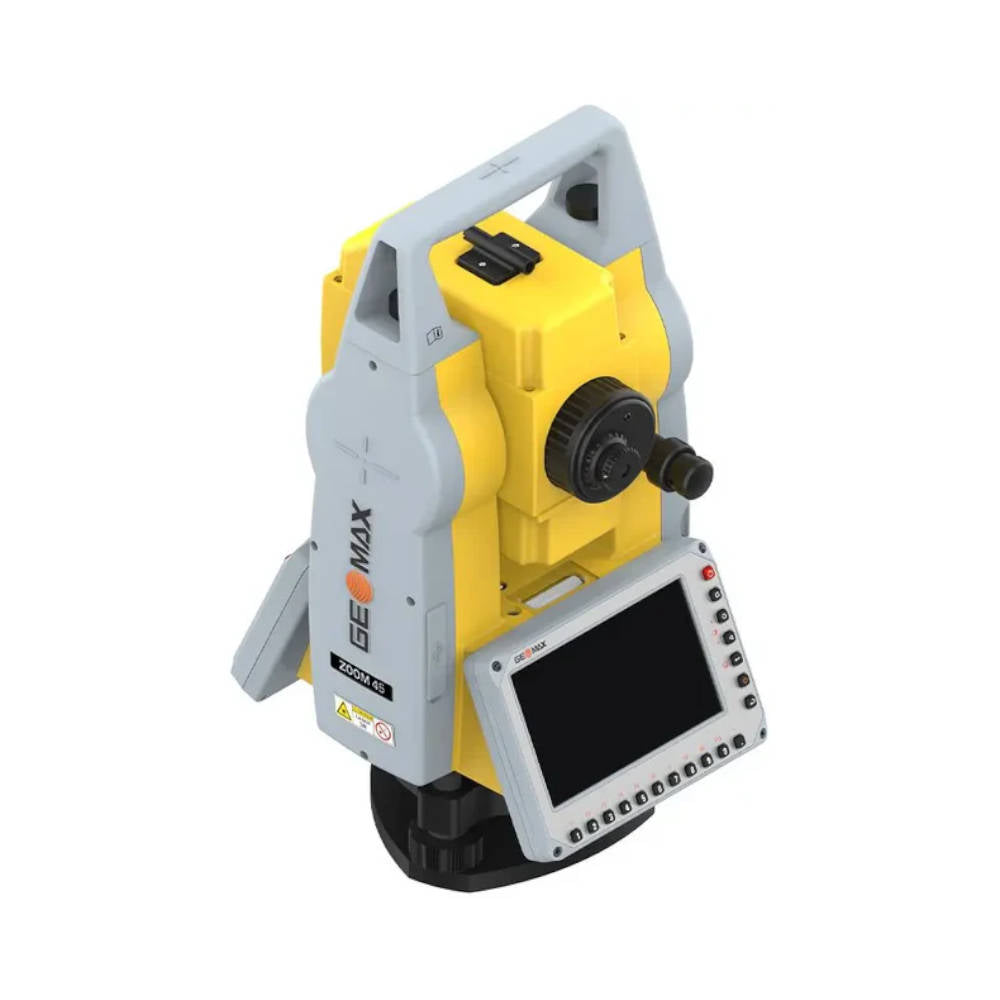

The Geomax Zoom45 Manual Total Station is built for speed, accuracy, and productivity on construction sites. It combines fast point measurements with a robust, user-friendly design and seamless digital integration. Featuring a 5-inch color touchscreen and Android OS, the Zoom45 runs X-PAD Ultimate field software, enabling visual layout workflows directly on the instrument or via a field controller. With data syncing through X-PAD 365, crews can share and access job data in real time.
Designed for layout and stakeout tasks, the Zoom45 offers reflectorless range up to 500 meters, prism-based measurements up to 5,000 meters, and angular accuracy options of 2" or 5". Its quad-axis angle compensation and dual-axis tilt sensors ensure reliable results even on uneven terrain. With IP55 protection and up to 8 hours of runtime, it’s ready for any jobsite condition.
In the Box
- Zoom45 Total Station - 2"/5" Accuracy
- ZCH201 Battery Charger (ZBA200/201/400)
- GEV192-1 AC/DC Adapter for GKL112/311 US
- ZBA400 Li-Ion Battery (4.4Ah)
- ZTR101 Tribrach (Without Plummet)
- Carrying Case
- Quick Guide
