Description
Specifications
- Channels: 555
- Initialization Time: 4 seconds
- Position Rate: 5 Hz (20 Hz optional)
- RTK Accuracy: Hz: 8mm + 1ppm; V: 15mm + 1ppm
- Static Accuracy: Hz: 3mm + 0.5ppm; Hz: 5mm + 0.5ppm
- Protection Class: IP68
- Operating Time: 12.5 hours
- Operating Temperature: -40°F to 149°F (-40°C to 65°C)
Product Description

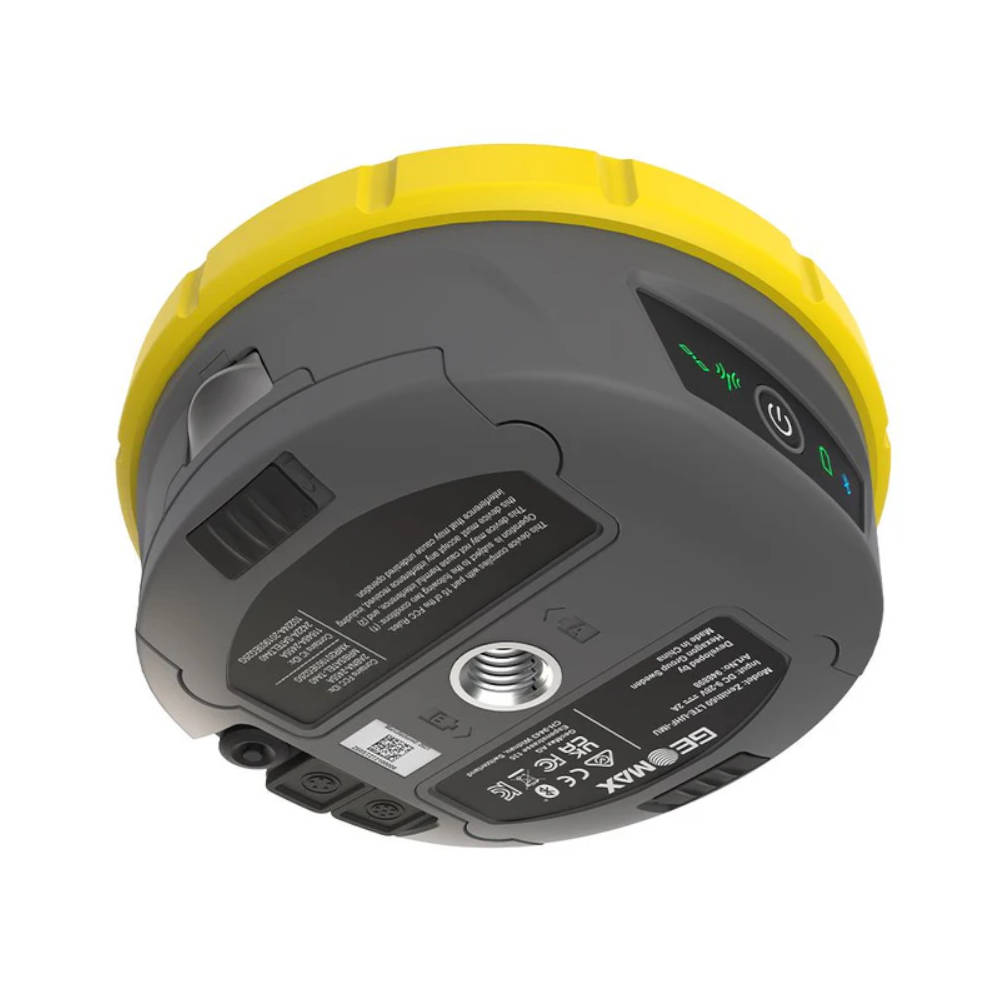

The GeoMax Zenith60 GNSS receiver is built for professionals who demand reliability, speed, and flexibility in the field. This variant features calibration-free tilt compensation, an integrated UHF radio module (antenna included), and advanced tracking powered by NovAtel's cutting-edge engine. Whether you're working in harsh environments or need rapid point acquisition without leveling the pole, the Zenith60 delivers consistent performance and robust accuracy.
Pair the Zenith60 with X-PAD Ultimate field software and GeoMax controllers to create a seamless data workflow—from real-time GNSS positioning in the field to efficient file sharing via X-PAD 365 cloud. With 4G LTE connectivity, a rugged IP68 build, and compatibility with all major constellations, the Zenith60 ensures you’re equipped for current and future survey challenges..
In the Box
- (1) Zenith55 GNSS Smart Antenna w/UHF Radio and Tilt Compensation
- UHF Radio Antenna
- (1) MicroSD Card
- (1) USB Cable
- Rechargeable batteries and charger
- Hard case
- Multilingual Quick Guide
