Description
Specifications
- Channels: 600+
- Initialization Time: 6 seconds
- Position Rate: 10 Hz
- RTK Accuracy: Hz: 10mm + 1ppm; V: 20mm + 1ppm
- Static Accuracy: Hz: 5mm + 0.5ppm; Hz: 8mm + 0.5ppm
- Protection Class: IP68
- Operating Time: 12.5 hours
- Operating Temperature: -40°F to 149°F (-40°C to 65°C)
Product Description

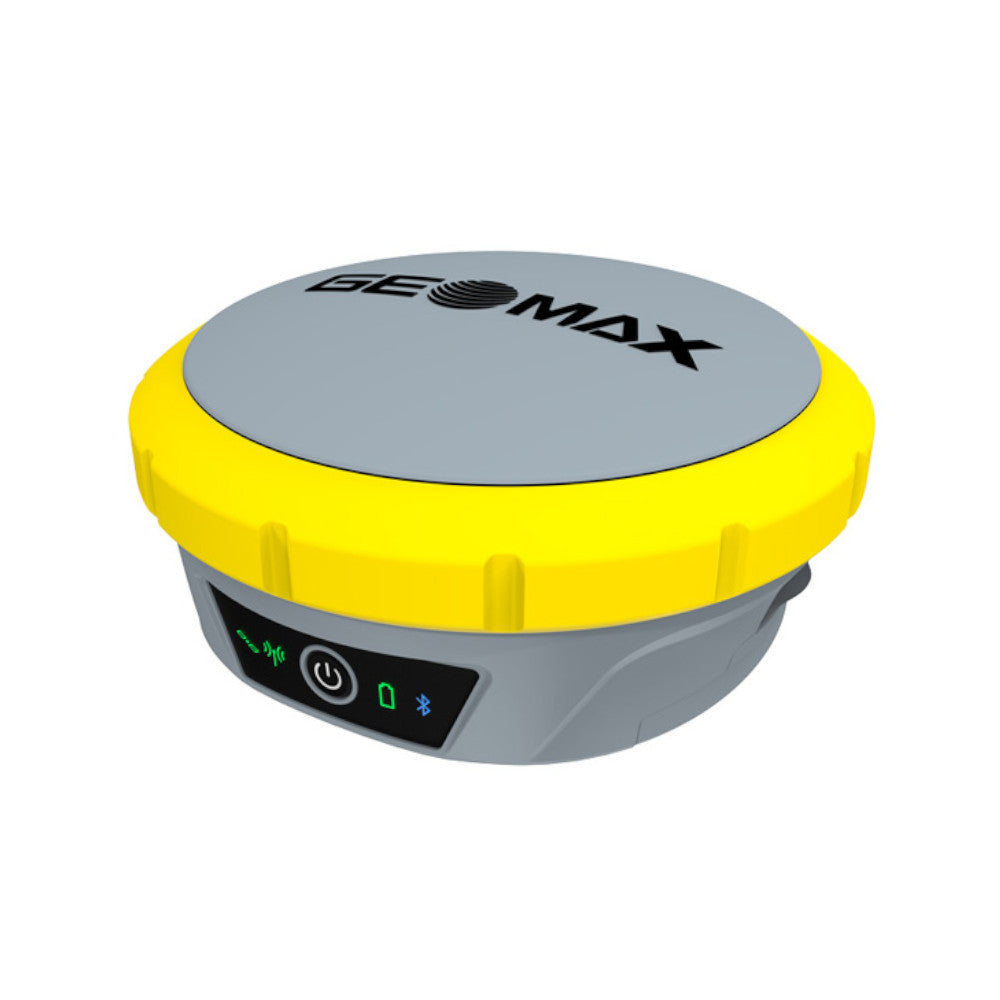

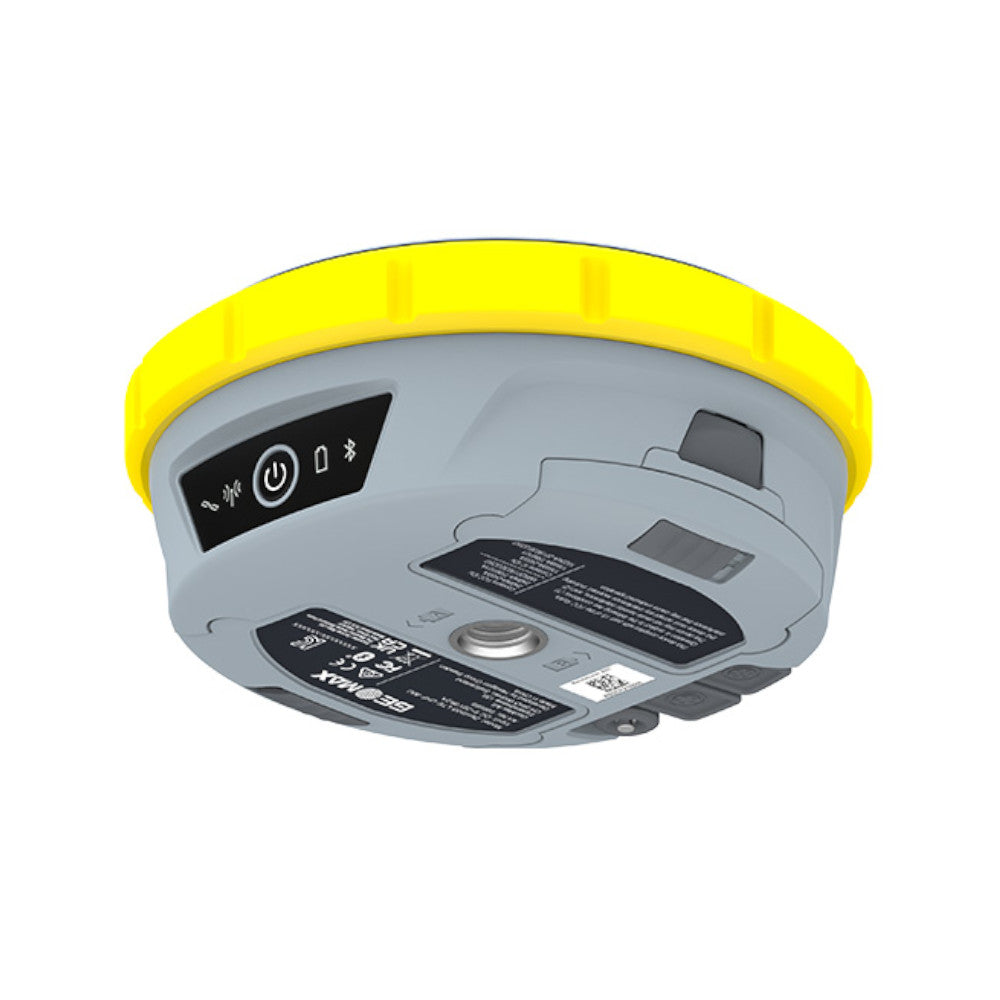

Featuring calibration-free tilt compensation, over 600 tracking channels, and multi-constellation support, the Zenith55 is designed to boost productivity in the field while delivering a strong return on investment.
Built to integrate seamlessly with the GeoMax ecosystem, the Zenith55 pairs effortlessly with robotic total stations, field controllers, and X-PAD field software for smooth field-to-office workflows. The included LTE modem and open communication interfaces provide real-time data exchange and connectivity on any site.
This model includes an internal UHF radio module for RTK base/rover communication. It supports 500 mW or 1W transmission power over a 410–470 MHz frequency range. Note: UHF antenna is sold separately.
In the Box
- (1) Zenith55 GNSS Smart Antenna w/UHF Radio and Tilt Compensation
- (1) MicroSD Card
- (1) USB Cable
- Rechargeable batteries and charger
- Hard case
- Multilingual Quick Guide
