Geomax Zenith16 GNSS Receiver Rover Set (w/o Pole)

Save $782.36
GeoMaxSKU: 6013621
No reviews

Choose Model: w/o SATEL Radio
Price:
$7,202.64 + Free Shipping Regular price$7,985.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Description

Specifications
  • Channels: 555
  • Initialization Time: 4 seconds
  • Position Rate: 5 Hz (20 Hz Optional)
  • RTK Accuracy: Hz: 8mm + 1ppm; V: 15mm + 1ppm
  • Static Accuracy: Hz: 3mm + 0.5ppm; Hz: 5mm + 0.5ppm
  • Protection Class: IP68
  • Operating Time: 7 hours
  • Operating Temperature: -40°F to 149°F (-40°C to 65°C)
Product Description

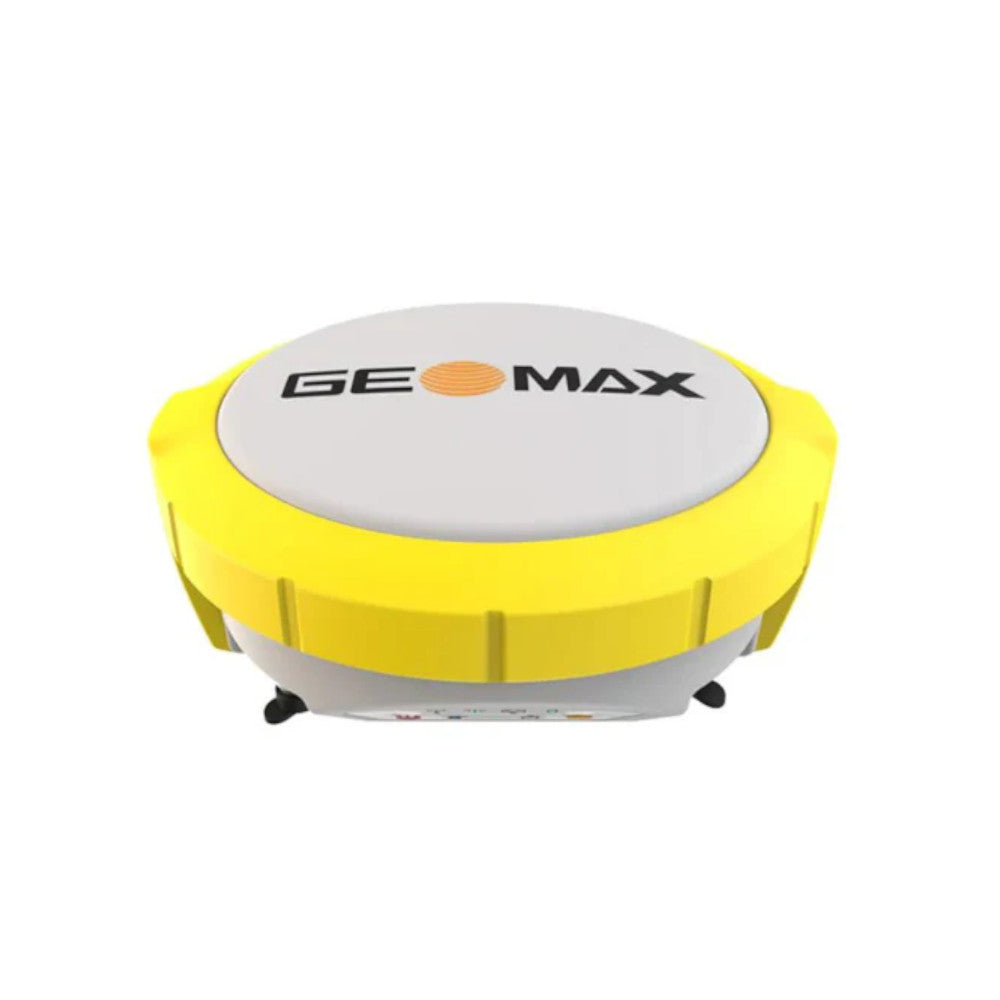

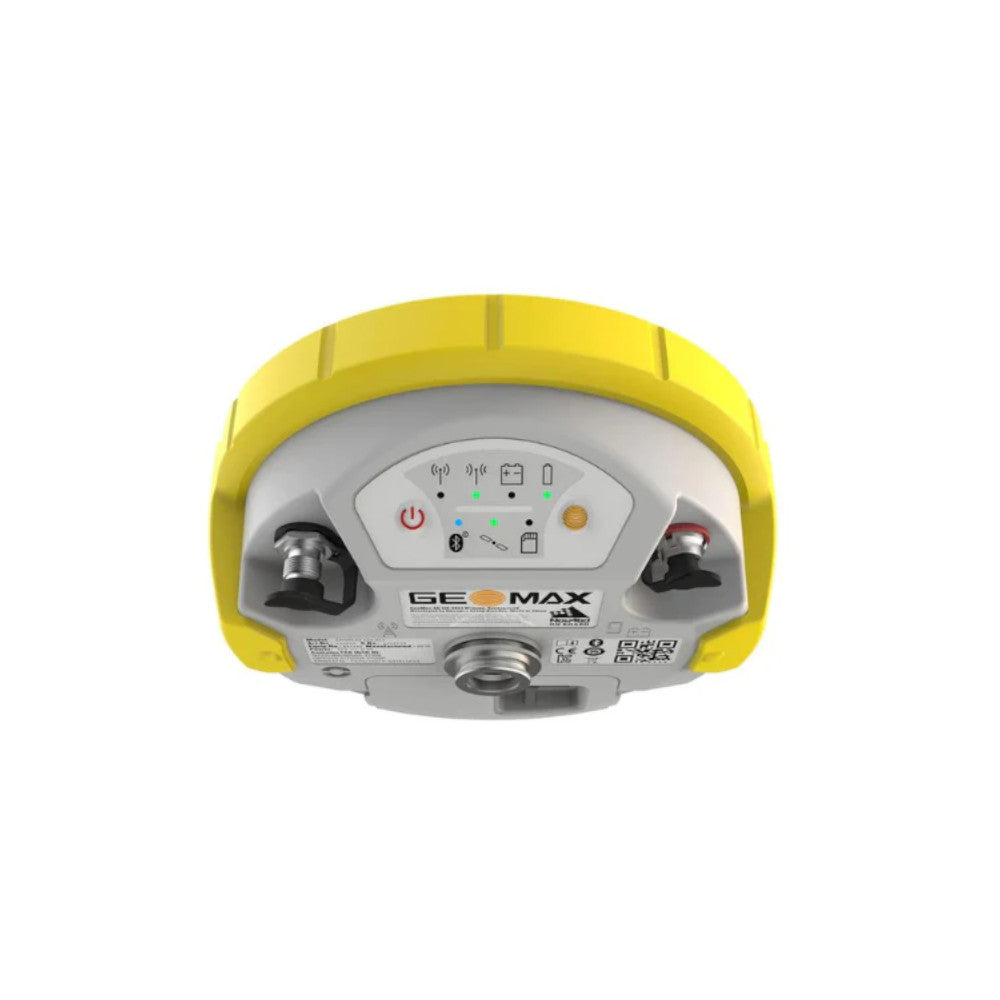

The GeoMax Zenith16 is a compact, high-performance GNSS smart antenna built to deliver reliable positioning even in tough field conditions. Powered by NovAtel’s OEM719 engine and supporting 555 channels across all major satellite constellations, the Zenith16 ensures rapid and accurate GNSS data collection.

With multi-frequency tracking, PPP capabilities, and fast initialization, the Zenith16 excels in both RTK and static applications. It integrates seamlessly with X-PAD Ultimate field software and X-PAD 365 cloud services, allowing you to manage data, perform stakeouts, and transfer files smoothly between field and office.

Built for flexibility, the Zenith16 can be configured using the standalone Zenith Manager app, eliminating the need for a controller during setup. Its rugged IP68-rated housing, MIL-STD durability, and up to 7 hours of internal battery life make it a reliable solution for surveyors seeking performance and value.

The Zenith16 is available in two configurations:

  • With SATEL UHF Radio: Includes a 500mW (optional 1W) SATEL internal UHF radio with 403–473 MHz frequency range for RTK base/rover communication. Ideal for users who plan to operate in base-rover setups without relying solely on cellular correction services.
  • Without UHF Radio: Perfect for network RTK workflows, especially in areas with reliable NTRIP or when working with third-party base stations.
In the Box
  • (1) Zenith16 GNSS Smart Antenna (as per choice)
  • (1) MicroSD Card
  • (1) USB Cable
  • Rechargeable batteries and charger
  • Hard case
  • Multilingual Quick Guide
