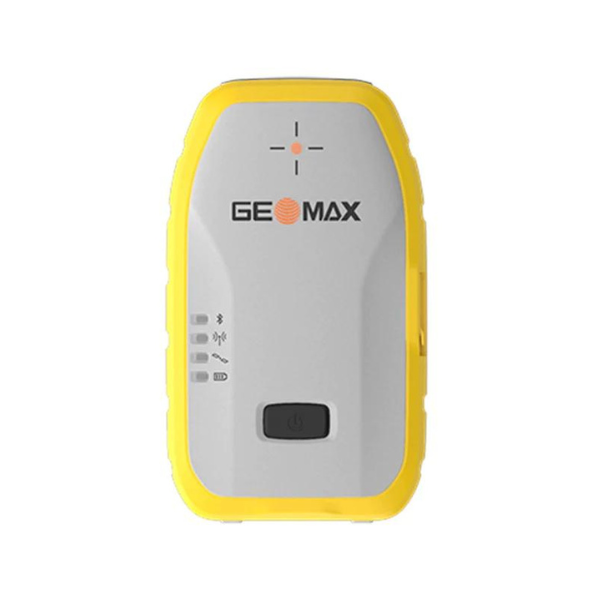

GeoMax Zenith06 GNSS Receiver

GeoMaxSKU: 948914
No reviews

Price:
Sale price$4,100.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Description

Increase efficiency and accuracy in surveying with the GeoMax Zenith06 GNSS Receiver. This compact, lightweight smart antenna is designed for easy use, reducing the need for extensive training. It is specifically designed to work with the X-PAD Ultimate field software (sold separately), which allows for quick and easy data collection and management. The X-PAD software has been developed in collaboration with customers, incorporating real-time feedback to create a user-friendly and reliable tool for surveying teams. The intuitive software is also easily accessible through a GeoMax controller or any device of your choice. With the unique QR-iConnect functionality, connecting to the GNSS receiver is as simple as scanning a QR code, saving time searching through long device lists. Data management is also made convenient with the X-PAD 365 GeoMax cloud platform, which allows for secure storage, access, and sharing of data from any device. The Collaborative Survey and Stakeout feature enables several users to work on the same stakeout or surveying project so they can see real-time progress in surveyed points and drawings.

Key Features

  • 184 channels for reliable satellite tracking
  • Multi-constellation support (GPS, Glonass, Galileo, Beidou, QZSS, SBAS)
  • Lightweight at only 0.7 lb
  • Works with X-PAD Ultimate field software
  • Convenient data management with cloud-based X-PAD 365
  • Fast connection with QR scanning functionality
  • IP67 dustproof and water-resistant rating
  • Long-lasting 20-hour battery life

Specifications

Accuracy

  • RTK:
    • Horizontal (Hz): 2 cm + 1 ppm
    • Vertical (V): 3 cm + 1 ppm
  • Static:
    • Horizontal (Hz): 2 cm + 1 ppm
    • Vertical (V): 3 cm + 1 ppm

Battery/Power

  • Battery Life: > 20 hours
  • Power Source: Removable Li-Ion 6.12 Ah
  • Voltage: 3.8 V

Communication Interface

  • Bluetooth: Yes
  • Cellular: Yes
  • Wireless LAN: Yes

Display/Keypad

  • Keys: On/off and Fn Key

General

  • Dimensions: 5.47" x 3.1" x 1.20" (139 mm x 80.6 mm x 30.6 mm)
  • Warranty: 1-Year Manufacturer's Warranty
  • Weight: 0.7 lb (340 g)
  • Operating Temperature: -40°F to 149°F (-40°C to 65°C)

Tracking Features

  • Channels: 184
  • Satellites: GPS / GLONASS / BeiDou / Galileo / QZSS
