GeoMax Zone20 H, Self Leveling Rotary Laser w/Laser Receiver
GeoMax Zone20 H, Self Leveling Rotary Laser w/Laser Receiver
GeoMax Zone20 H, Self Leveling Rotary Laser w/Laser Receiver
GeoMax Zone20 H, Self Leveling Rotary Laser w/Laser Receiver
GeoMax Zone20 H, Self Leveling Rotary Laser w/Laser Receiver
Roll over image to zoom in Click on image to zoom
GeoMax Zone20 H, Self Leveling Rotary Laser w/Laser ReceiverGeoMax Zone20 H, Self Leveling Rotary Laser w/Laser ReceiverGeoMax Zone20 H, Self Leveling Rotary Laser w/Laser ReceiverGeoMax Zone20 H, Self Leveling Rotary Laser w/Laser ReceiverGeoMax Zone20 H, Self Leveling Rotary Laser w/Laser Receiver

GeoMax Zone20 H, Self Leveling Rotary Laser w/Laser Receiver

Save $232.00
GeoMaxSKU: 327080-NC
No reviews
Model: w/ZRP105 Pro Receiver
Price:
$928.00 + Free Shipping $1,160.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Description

SPECIFICATIONS

  • Self-leveling range: ±5 degrees
  • Working range: up to 800m (2,625ft) diameter with laser receiver
  • Accuracy: ±1.5mm at 30m (±1/16in at 100ft)
  • Rotation speed:300, 600, and 900 rpm
  • Laser class: 2
  • Laser diode: 635nm, <1mW
  • IP rating: IP67 (water and dust resistant)
  • Operating temperature range: -20°C to +50°C (-4°F to +122°F)
  • Power source: 4x D-cell batteries (not included)
  • Battery life: up to 45 hours
  • Weight: 2.2kg (4.85lb)
  • Dimensions: 212 x 192 x 187 mm (8.3 x 7.6 x 7.4 in)

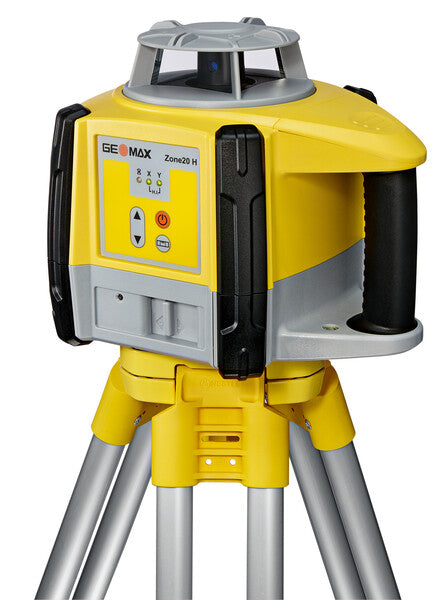

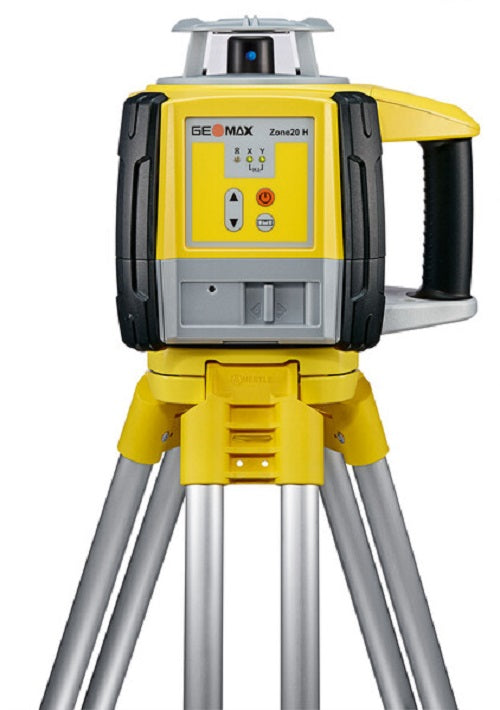

GeoMax Zone20 H is a horizontal rotary laser level used in construction and surveying. It is designed to provide accurate and reliable leveling for a variety of applications such as grading, excavating, and concrete pouring. The laser emits a horizontal plane which can be detected by a receiver, allowing for precise measurements and alignments. The Zone20 H also features automatic self-leveling, making it easy to use even on uneven terrain.

Operating within a diameter of 900 meters (2,952 feet), this device exhibits self-leveling accuracy of approximately ± 3/32" at 100 feet. It can self-level within a range of ± 6 degrees and boasts a rotation speed of 600 rotations per minute.

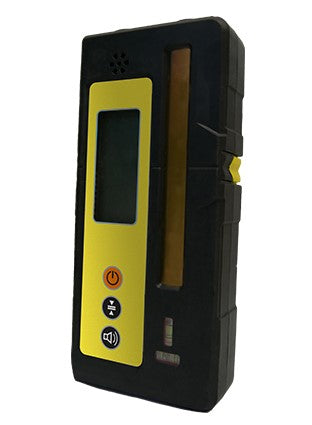

  • The ZRB90 package comprises of the ZRB90 Basic Receiver, which operates within a working diameter of 600 meters (1,968 feet) and offers an extended detection window of 3.1 inches. The ZRB90 basic receiver is specially designed to detect the laser beam emitted by the Zone20 H, providing both visual and audible indications of the beam's position. With a range of up to 600 meters (1,312 feet) and an accuracy of ±2.5 mm (±1/10 inch), the receiver ensures precise measurements.

  • The ZRD105 package comprises of the ZRD105 Digital Receiver, which operates within a working diameter of 900 meters (2,952 feet) and offers an extended detection window of 3.1 inches. The ZRD105 digital receiver is specially designed to detect the laser beam emitted by the Zone20 H, providing both visual and audible indications of the beam's position. With a range of up to 900 meters (2,952 feet) and an accuracy of ±2.5 mm (±1/10 inch), the receiver ensures precise measurements.

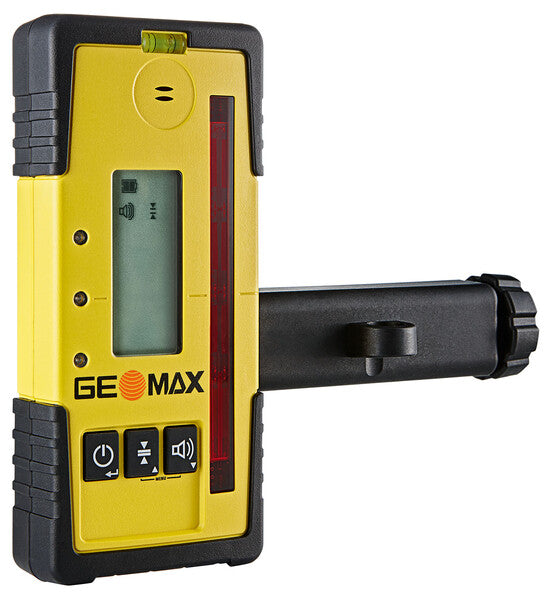

  • The ZRP105 package comprises of the ZRP105 Pro Receiver, which operates within a working diameter of 900 meters (2,952 feet) and offers an extended detection window of 3.1 inches. The ZRP105 Pro receiver is specially designed to detect the laser beam emitted by the Zone20 H, providing both visual and audible indications of the beam's position. With a range of up to 900 meters (2,952 feet) and an accuracy of ±2.5 mm (±1/10 inch), the receiver ensures precise measurements.
